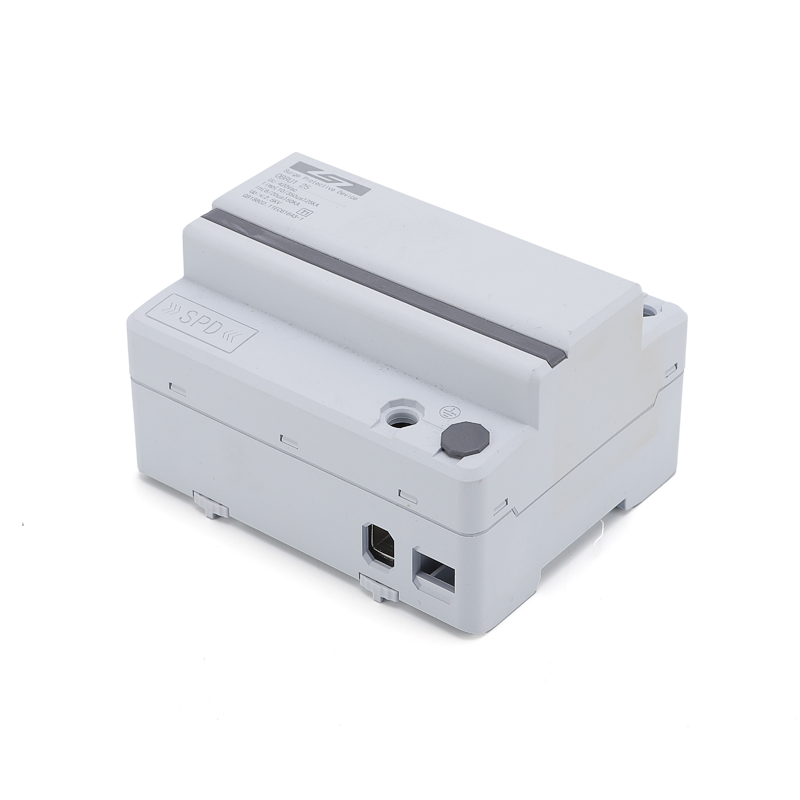

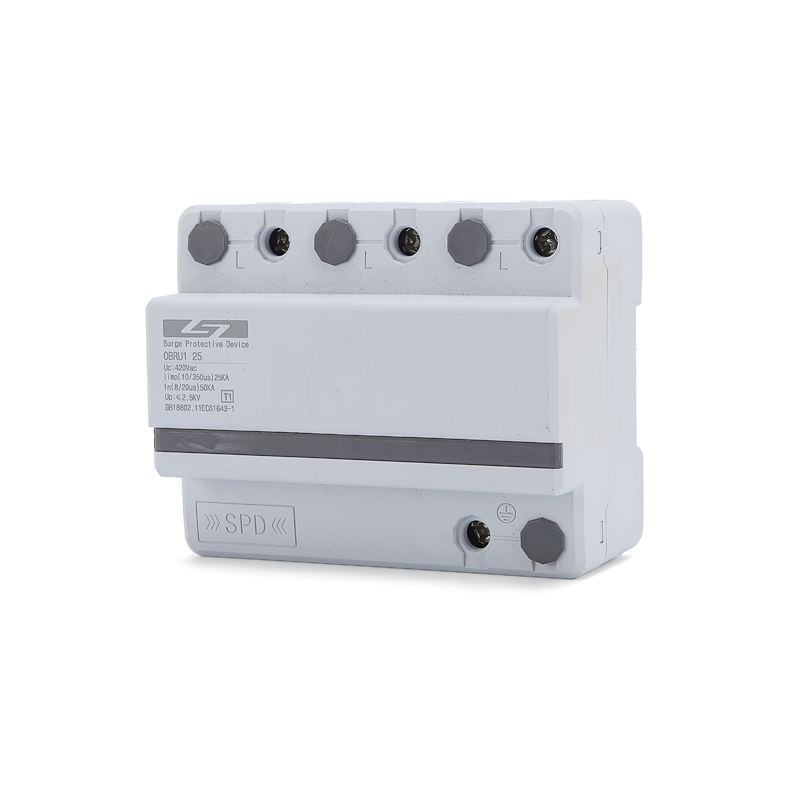

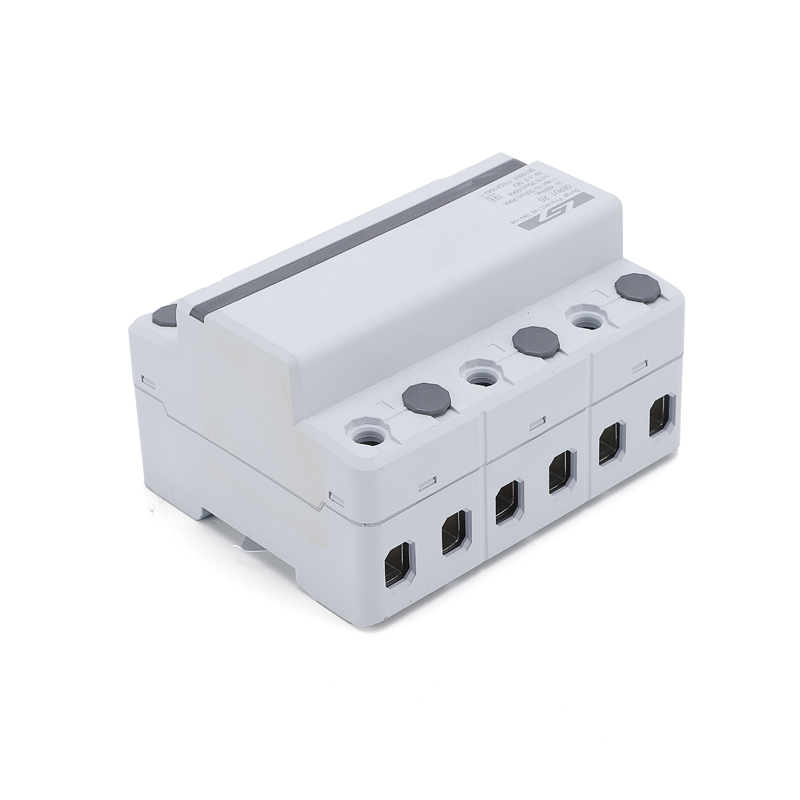

OBRU1-25 Xidaier conjoined
Product Description
Description
OBRU1-25 series voltage limiting type/voltage switching type primary power surge protectors are designed according to IEC and EN 61643 standars, and applied to surge protection at the first stage of the power supply system. Products are standard 35mm rail mounting methods.
OBRU1-25 series voltage limiting type/voltage switching type primary power surge protectors with high flow capacity, single module impact current up to 50kA（10/350s），can prevent all kinds of lightning surge. Products are applies to the power supply of the equipment system in the higher risk area of lightning strike. The first surge protection can be used in single phase/three-phase power supply line.
Accessories
Large discharge energy
No leakage
No follow current
Modular installation
High safety coeffcient
Long service life
Strong environmental resistance
Voltage protection level is less than 2500V
The scope of products
Main power distribution panel in buildings
Overhead distribution box in buildings
Outdoor distribution cabinet/distribution box
Product capability parameter
|
Mode |
OBRU1-15 |
OBRU1-25 |
OBRU1-50 |
|
SPD port |
2 Poles |
3 Poles |
4 Poles |
|
SPD category |
Voltage limited type |
Voltage limited type |
Voltage limited type |
|
Test category |
Class I test |
Class I test |
Class I test |
|
Un |
220/380VAC；50/60Hz |
||
|
Uc |
275/385/420VAC；50/60Hz |
||
|
Insulation resistance |
>100MΩ |
>100MΩ |
>100MΩ |
|
limep（10/350μs） |
15kA |
25kA |
50kA |
|
Up（1.2/50μs） |
1.5kV |
1.5kV |
1.8kV |
|
tA |
≤100ns |
≤100ns |
≤100ns |
|
Size |
72×90×66 |
108×90×66 |
144×90×66 |
|
Sectional area of wires |
6~25mm2 |
6~25mm2 |
6~25mm2 |
|
Installation method |
35mm standard rail（EN50022/DIN46277-3） |
||
|
Woeking environment temperature |
-40~85℃ |
||
|
Sheathing material |
Plastic, accord with UL94 V-0 |
||
|
Protection level |
IP 20 |
||
|
Autehntication |
CQC CE Type test |
||
