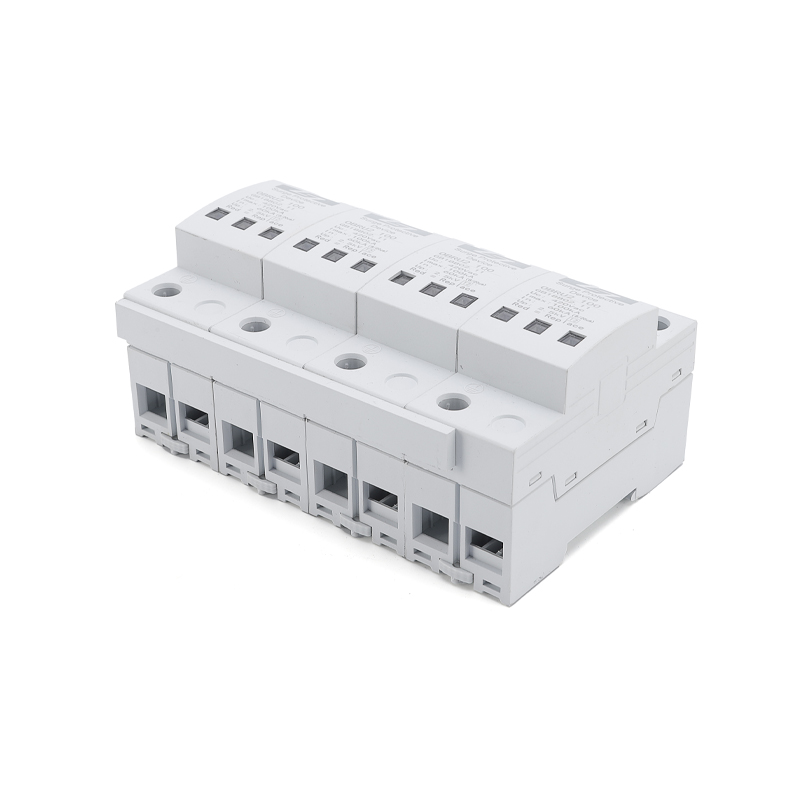

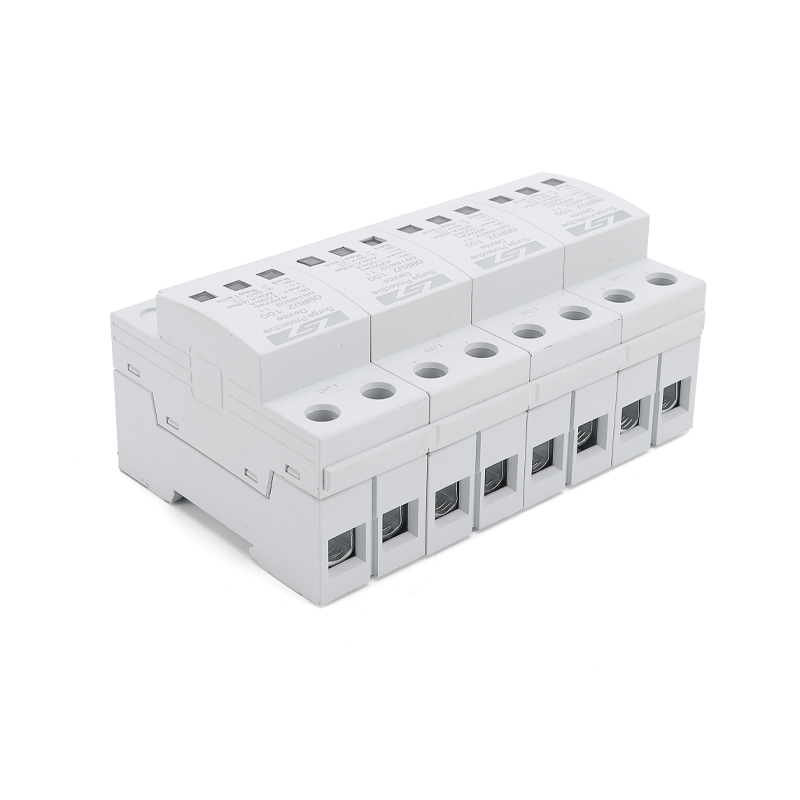

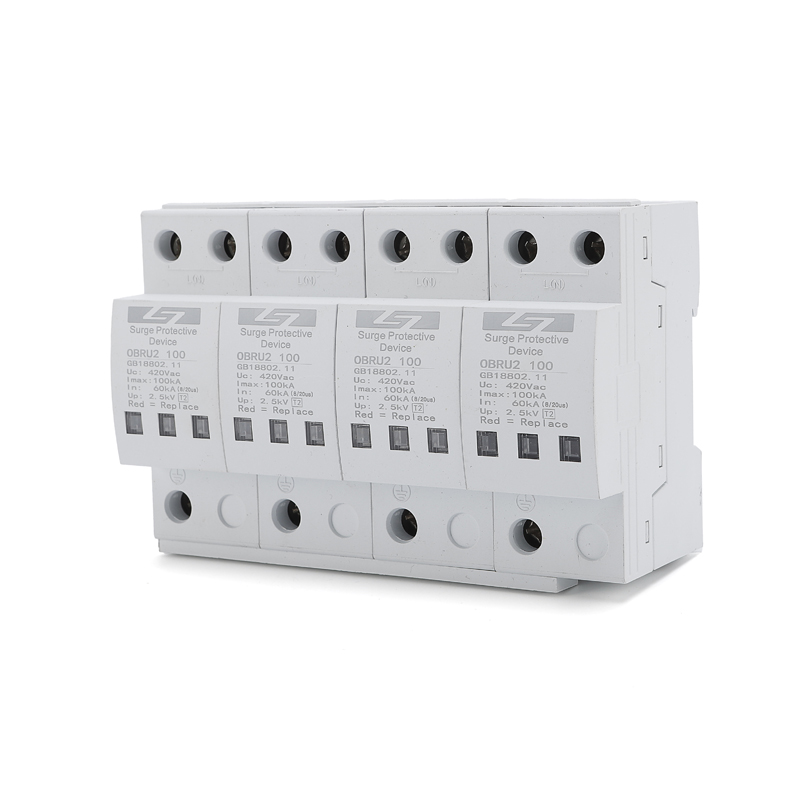

OBRU2-100 Xidaier Split
Product Description
Describe
The OBRU2-100 (T2) surge protector is designed specifically for photovoltaic power generation and is installed at the outlet of photovoltaic panels with high risk of direct lightning strikes. It is suitable for protecting photovoltaic systems with DC voltages of 1000V and 1500V.
Features
T1+T2 type surge protection device
VG technology
Up to 1500Vdc
No leakage, no working current
Impulse current Iimp/total: 5/2 μ s&10/350 μ s
Plug in module
Remote signal (optional)
Compliant with EN 50539-11
Specifications
|
Type |
|
OBRU2-100 |
||
|
Describe |
|
T1+T2 type DC surge protector |
||
|
Pole |
2P |
3P |
3P |
|
|
Protected mode |
CM/DM |
|||
|
Max working voltage |
Ucpv |
600 Vdc |
1000 Vdc |
1500 Vdc |
|
Maxi current |
Iscpv |
1000A |
||
|
In 8/20μs |
In |
20KA |
||
|
Imax 8/20μs |
Imax |
40KA |
||
|
Max lightning current 10/350μs |
limp |
5KA/12.5KA |
||
|
Total lightning current 10/350μs |
Itotal |
10KA |
||
|
Total max discharge current 8/20 us |
Itotal |
60KA |
||
|
Protecting the Extreme CM/DM（at In） |
Up |
2.2KV |
3.5KV |
5.2KV |
|
Features |
|
|
Size |
Refer to the chart |
|
Install |
2.5-25 mm2Threaded terminals of wires |
|
Disconnect indicator |
1 indicator |
|
install |
35mm Standard guide rail |
|
Operation temperature |
-40℃~+85℃ |
|
protection grade |
IP 20 |
|
Housing material |
thermoplastic UL94-VO |
|
Compliant with standards |
EN50539-11EN61643-11 |

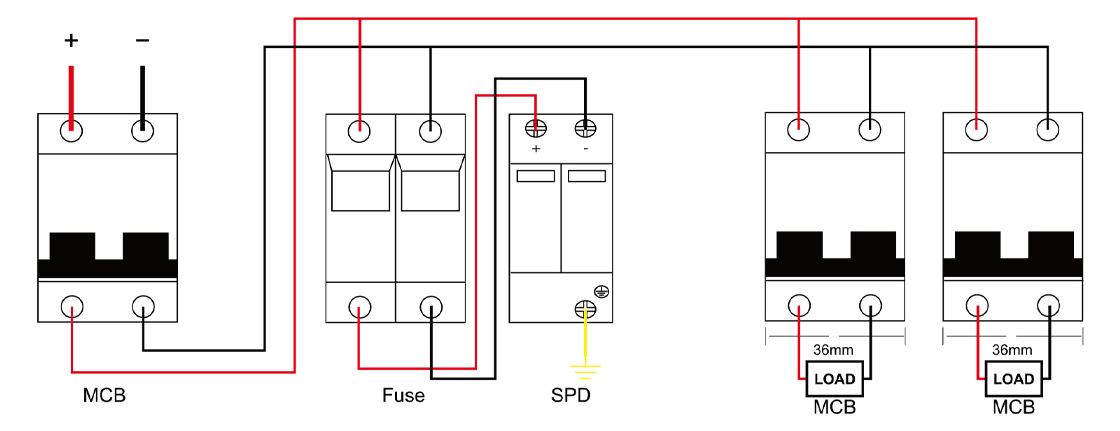

Wiring diagram

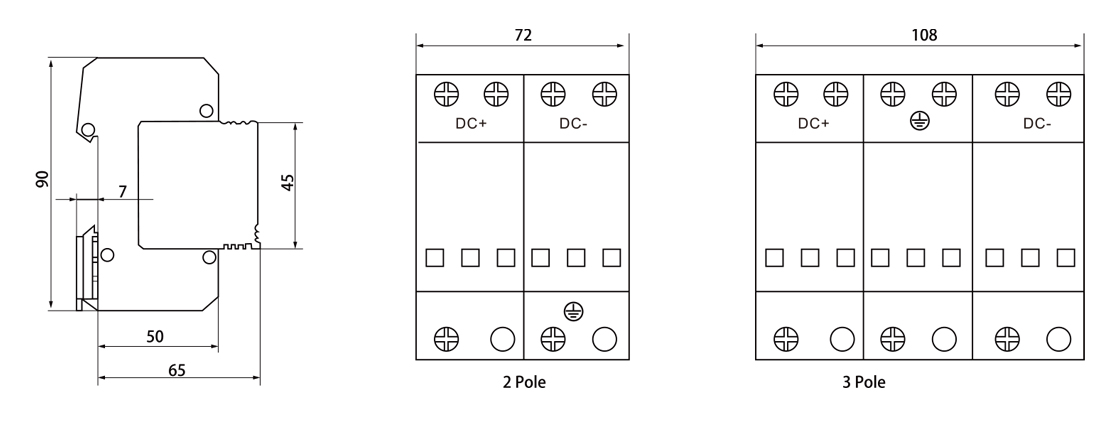

Size
