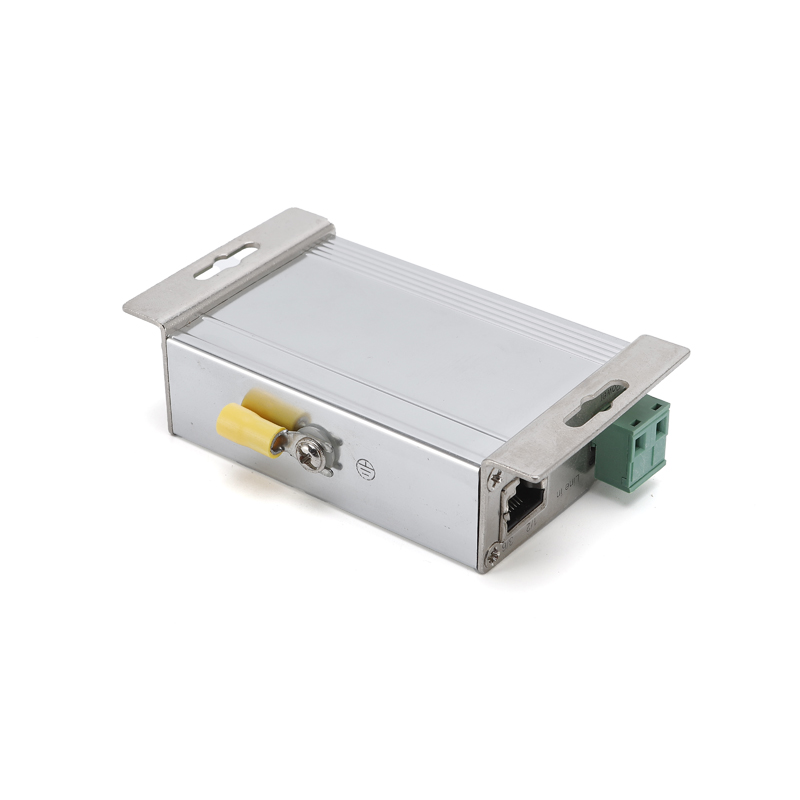

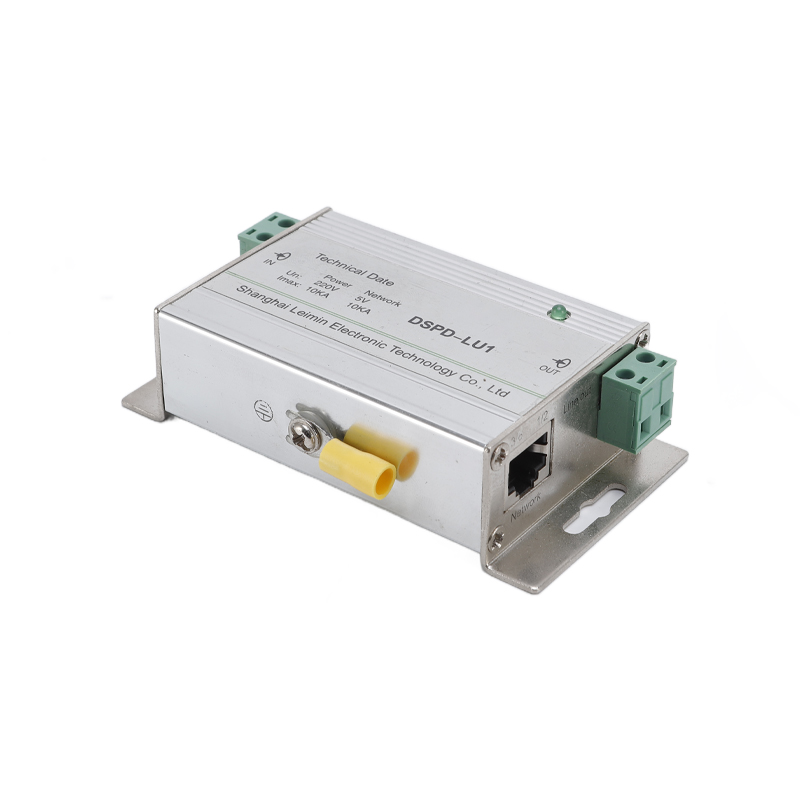

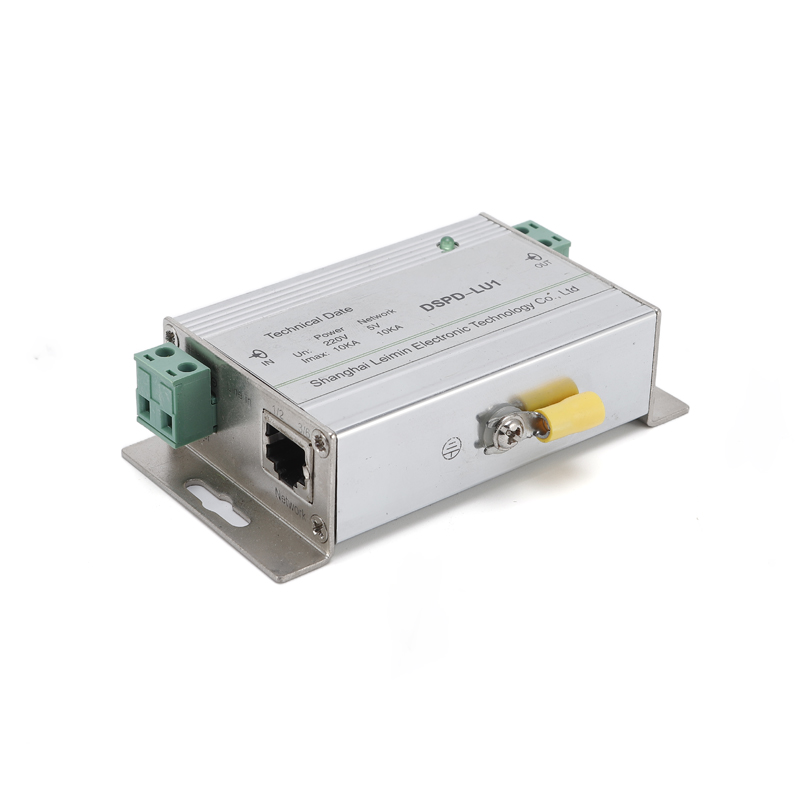

DSPD-LU1 2-in-1 signal protector
Product Description
Feature
Large flow capacity, multi-level protection.
Built in fast semiconductor protection device, fast response and low residual voltage.
The core components are international famous brands with superior performance.
Energy saving, environmental protection, simple installation, applicable to various standard interface types.
Low insertion loss to ensure smooth line.
The standing wave coefficient is small, and the operating frequency range is wide.
Product parameters
|
Name |
Two in one lightning arrester |
Three in one lightning arrester |
|||||||||||||
|
Explain |
Video+power |
100M network+power supply |
1000M network+power supply |
Video+data+power |
Network+data+power |
||||||||||
|
12V |
24V |
220V |
12V |
24V |
220V |
12V |
24V |
220V |
12V |
24V |
220V |
12V |
24V |
220V |
|
|
Insertion loss |
0.3dB |
||||||||||||||
|
Response time |
<0.1ns |
||||||||||||||
|
Working temperature zone |
-60℃~+80℃ |
||||||||||||||
|
Nominal discharge current |
5Ka |
||||||||||||||
|
Maximum discharge current |
10Ka |
||||||||||||||
|
Video/network parameters |
|||||||||||||||
|
working voltage Un |
5V |
||||||||||||||
|
Limiting voltage Uc |
8V |
||||||||||||||
|
Protection level Up |
15V |
||||||||||||||
|
Transmission speed Vs |
20Mbps |
100Mbps |
1000Mbps |
20Mbps |
100Mbps |
||||||||||
|
Parameters of power supply |
|||||||||||||||
|
Working voltage Un |
12V |
24V |
220V |
12V |
24V |
220V |
12V |
24V |
220V |
12V |
24V |
220V |
12V |
24V |
220V |
|
Limiting voltage Uc |
18V |
47V |
470V |
18V |
47V |
470V |
18V |
47V |
470V |
18V |
47V |
470V |
18V |
47V |
470V |
|
Protection level Up |
60V |
90V |
900V |
60V |
90V |
900V |
60V |
90V |
900V |
60V |
90V |
900V |
60V |
90V |
900V |
|
Data part parameters |
|||||||||||||||
|
Working voltage Un |
- |
5V |
|||||||||||||
|
Limiting voltage Uc |
8V |
||||||||||||||
|
Protection level Up |
15V |
||||||||||||||
|
Transmission speed Vs |
- |
||||||||||||||
|
Overall dimensions |
102mm×67mm×29mm/104mm×57mm×32mm |
||||||||||||||
Description of model selection
|
Functional classification |
Voltage classification |
Model |
Functional classification |
Voltage classification |
Model |
|
100M network+power two in one lightning protector (enhanced) |
12V |
TL-EV2/12 |
100M network+power two in one lightning arrester (ordinary type) |
12V |
TL-NP/12 |
|
24V |
TL-EV2/24 |
24V |
TL-NP/24 |
||
|
220V |
TL-EV2/220 |
220V |
TL-NP/220 |
||
|
Video+power two in one lightning protector (enhanced) |
12V |
TL-SV2/12 |
Video+power two in one lightning protector (ordinary type) |
12V |
TL-VP/12 |
|
24V |
TL-SV2/24 |
24V |
TL-VP/24 |
||
|
220V |
TL-SV2/220 |
220V |
TL-VP/220 |
||
|
Video+data+power three in one lightning protector (enhanced) |
12V |
TL-SV3/12 |
Video+data+power three in one lightning protector |
12V |
TL-VDP/ 12 |
|
24V |
TL-SV3/24 |
24V |
TL-VDP/ 24 |
||
|
220V |
TL-SV3/220 |
220V |
TL-VDP/ 220 |
||
|
Network+data+power three in one lightning protector (enhanced) |
12V |
TL-EV3/12 |
1000M network+power two in one lightning protector (enhanced) |
12V |
TL-KEV 2/ 12 |
|
24V |
TL-EV3/24 |
24V |
TL-KEV 2/ 24 |
||
|
220V |
TL-EV3/220 |
220V |
TL-KEV 2/ 220 |
Schematic Diagram of Product Structure and Dimensions
installation diagram
Installation Instructions
This product is connected in series.
Please select a product with the same interface type as the protected device.
A-A/BB of the product; (L/+) - (L/+)/(N/-) - (N/-) channels are one-to-one corresponding, and cross wiring is prohibited.
The "IN" of the lightning arrester is the input terminal connected to the "surge terminal" line, and the "OUT" is the output "equipment terminal" connected to the protected equipment.
The PE line of the lightning arrester must be reliably connected with the ground wire of the lightning protection system, and the connecting line is required to be short and thick.
The lightning arrester shall be inspected regularly during its use. In case of failure, it shall be repaired or replaced in time to ensure equipment safety.
